Name: Merits Health Vision Ultra HD Heavy Duty Power Wheelchair P331
SKU: 991792

About the Merits Vision Ultra HD

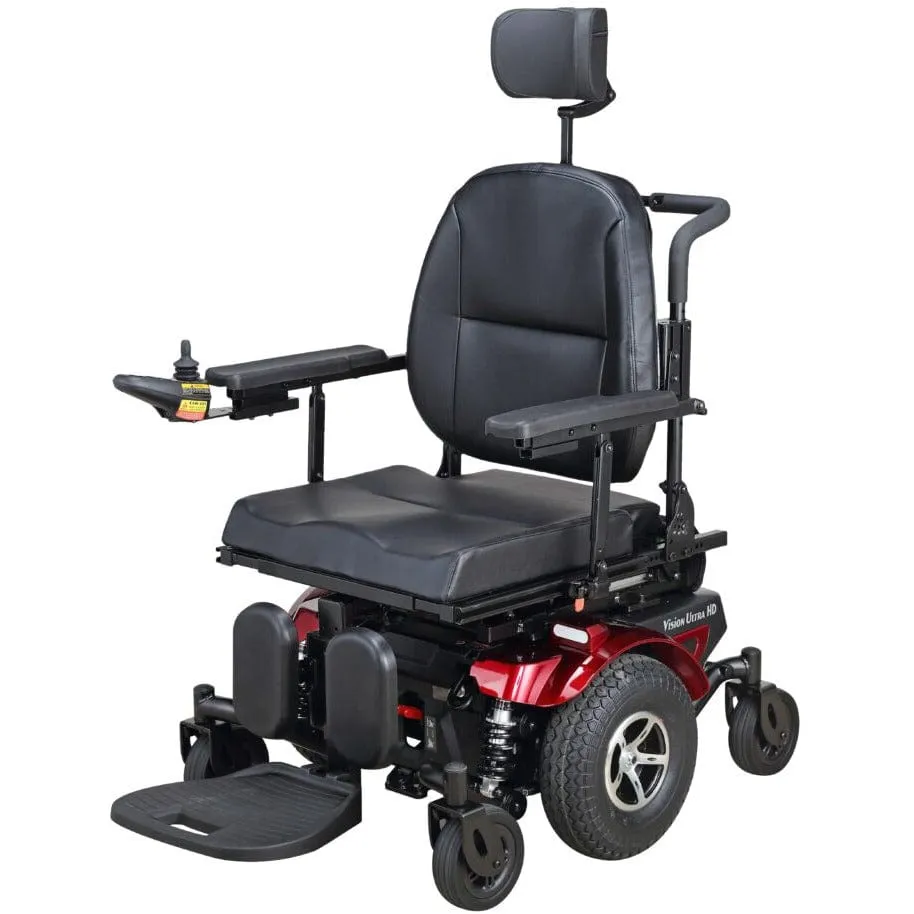

The Merits Vision Ultra HD Heavy Duty Power Wheelchair P331 is a durable and powerful electric wheelchair designed for outdoor use. The chair features a heavy-duty frame that can support up to 450 lbs, making it ideal for larger users. The P331 is equipped with four high-power in-line motors that provide excellent traction and stability on a variety of terrains. The chair's turning radius is only 20", making it easy to navigate tight spaces. The comfortable captain's seat is available in 22" and 24" widths and features a reclining backrest and adjustable headrest for added comfort. The chair also has flip-up armrests and adjustable footrests for added convenience. The P331 has a maximum speed of 5 mph and a range of up to 18 miles on a single charge. The chair also features a programmable controller that allows the user to adjust the speed, acceleration, and braking.

Standard Features

Weight capacity: 450 lbs
Mid-wheel drive design provides outstanding maneuverability
Adjustable seat width 20”-24” and seat depth 16”-22” for custom fit
Optimized seating stability with 4-post seat design
Front and rear suspension offers all day comfort and easy obstacle clearance
Fixed back angle: 90°, 95°, 100°, 105°and 110°
Dual in-line motors for enhanced efficiency, torque, range, and performance
Unoccupied transit tie down brackets included

Technical Specs

Max Speed: 5mph
Range: up to 8/15 miles
Turning Radius: 21″
Ground Clearance: 2.875″
Motor: DC 24V, 110W
Battery: 34Ah/U1 or 55Ah/22NF

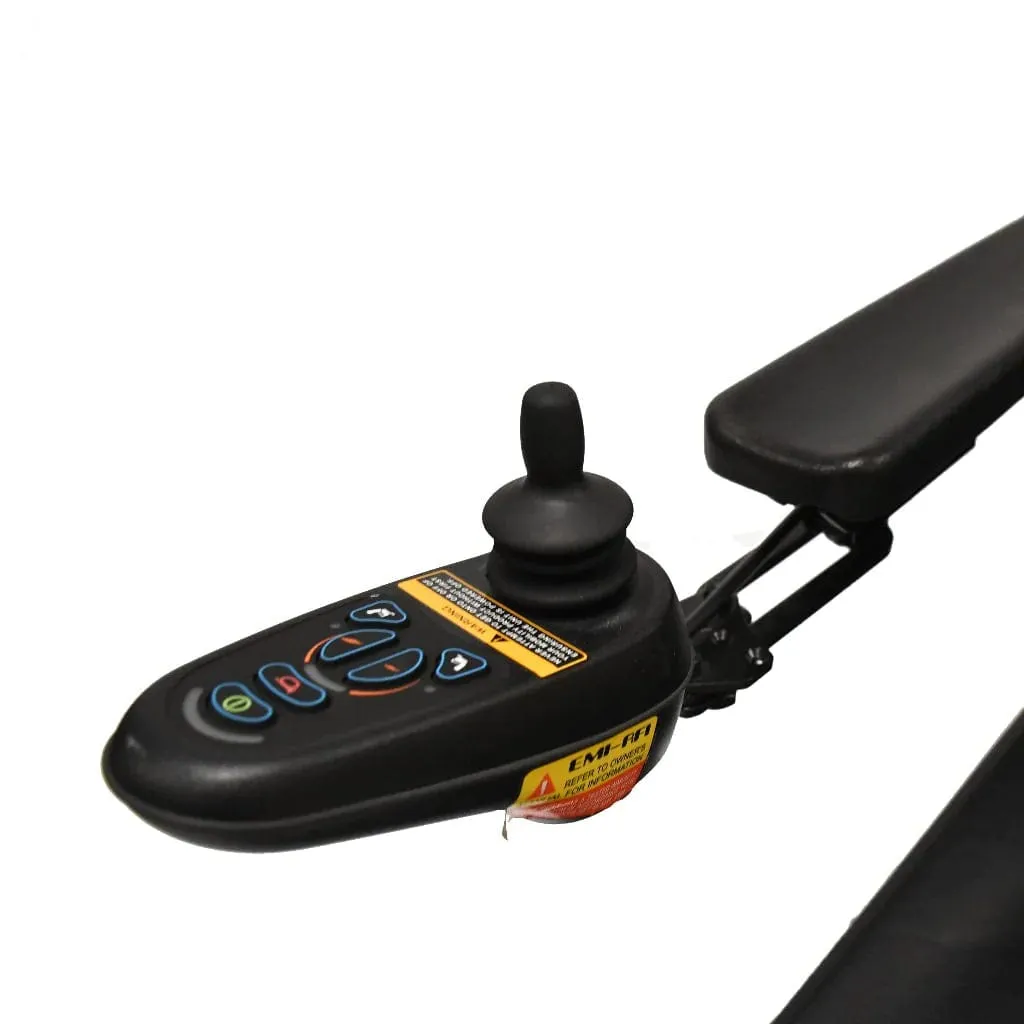

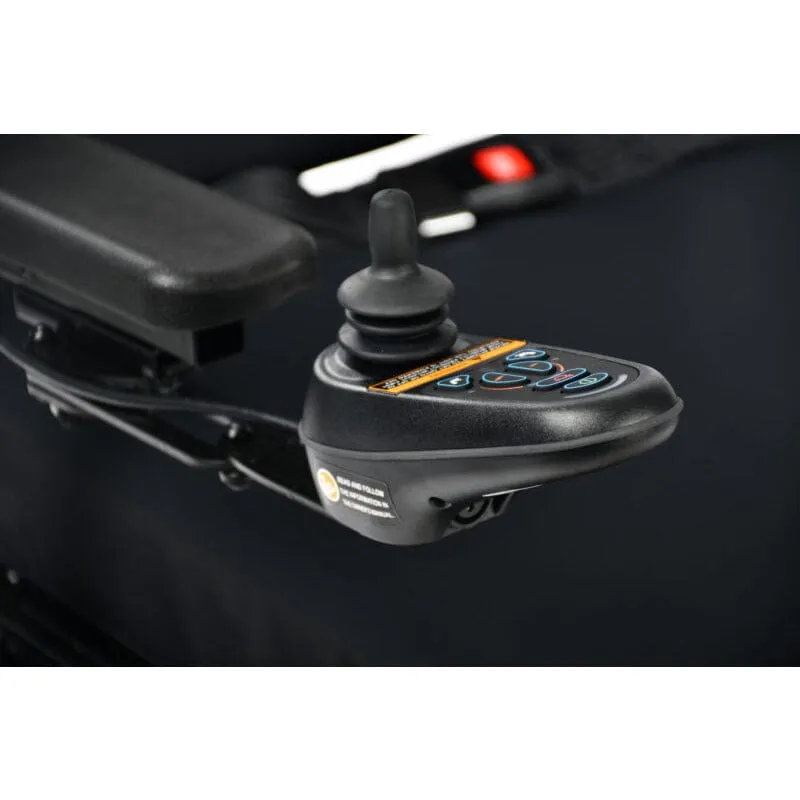

Controller: PG VR2-A2 60A
Gradient: 6°
Casters: 6″x 2″
Drive Wheels: 12″ x 3″

Dimensions

Seat Width: 22″
Backrest Height: 20″
Overall Length: 35″- 45″
Overall Width: 27″
Total Weight: 288 lbs – 310 lbs
Weight Capacity: 450 lbs

Warranty

Power Chair Warranty – Lifetime Limited

Merits Health Products, Inc. warrants the main frame of the Merits Vision Ultra HD against defects in material and workmanship for the lifetime expectancy of this power chair (5 years).

For one (1) year from the date of purchase, Merits will replace at their option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative in the material or workmanship: Electronic controllers, harnesses, chargers, motors. Labor charges incurred in the installation or repair of the above mentioned parts plus all freight charges are not included in the warranty.

Warranty exclusions: Tires, plastic or rubber parts, upholstery/armpads, painted surfaces, seating, bearings.

Merits Health Products, Inc. will repair or replace parts as required, provided that an authorization for such return has been acquired by an established dealer and that the part or parts in question are returned fully insured with freight prepaid to us within the prescribed period of warranty. Labor charges incurred in the installation or repair of the above mentioned parts plus all freight charges are not included in the warranty.

Merits Health Products, Inc will not warranty any parts damaged by improper installation and/or repair on the part of the individual owner’s neglect, accident or misuse, nor those parts altered or serviced by an agency not authorized by us.
