About the Merits Atlantis

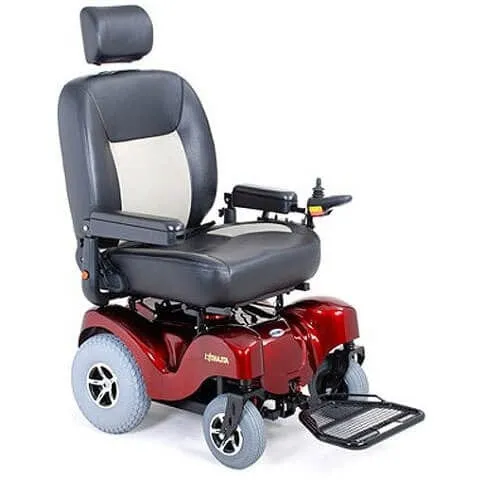

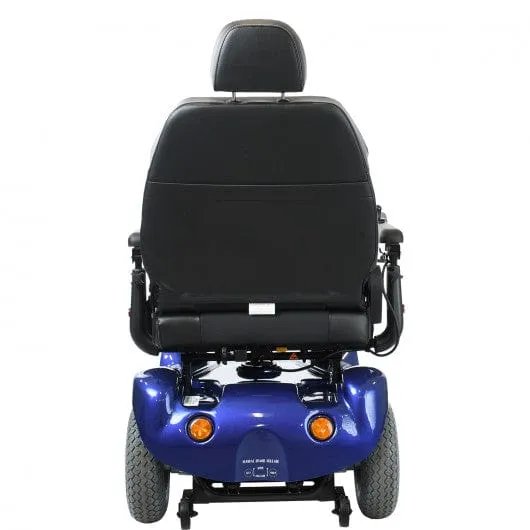

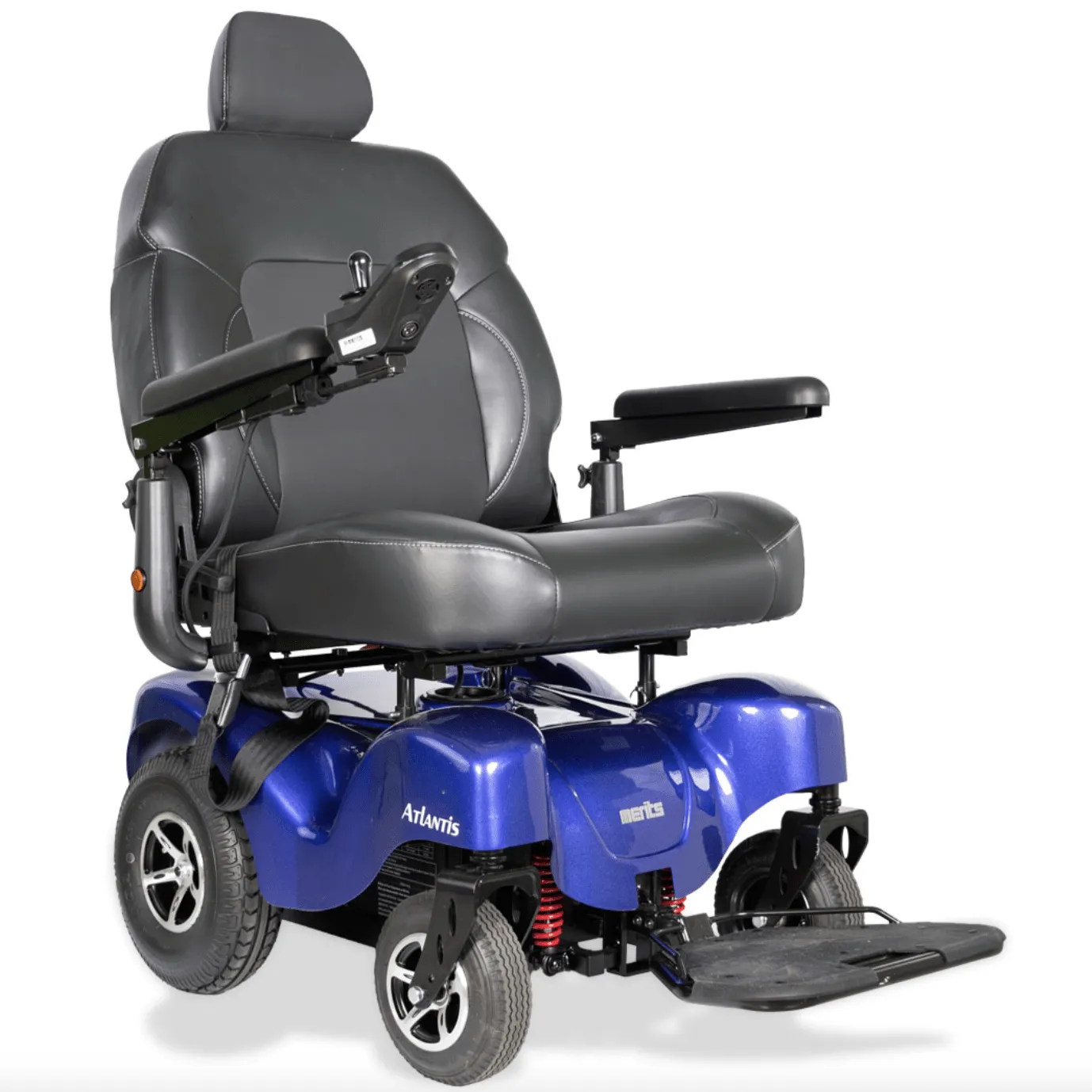

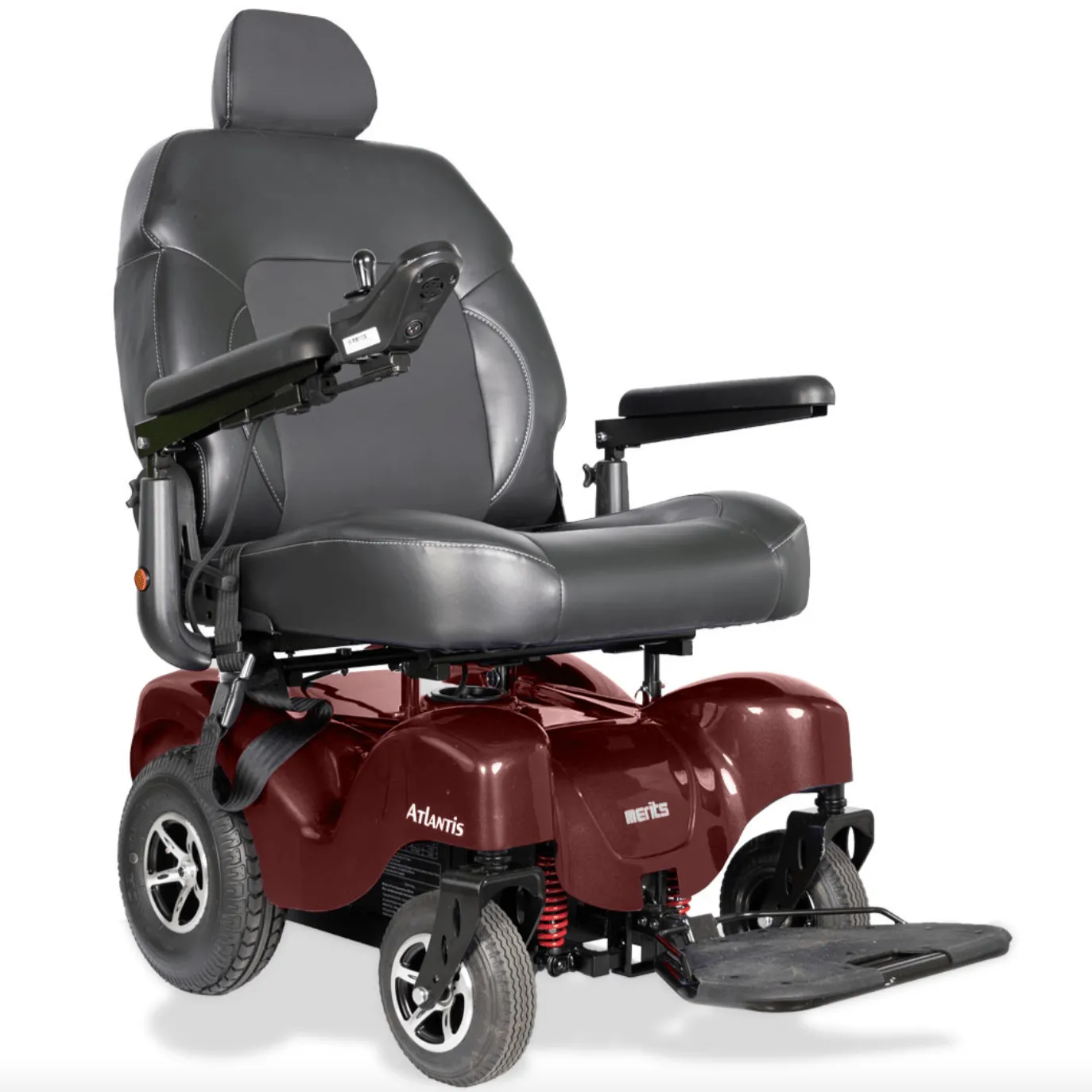

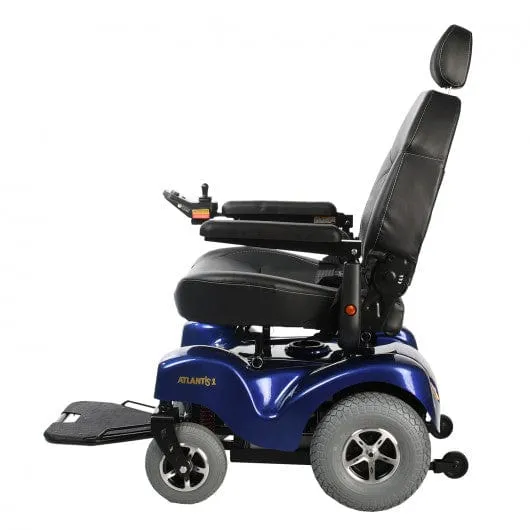

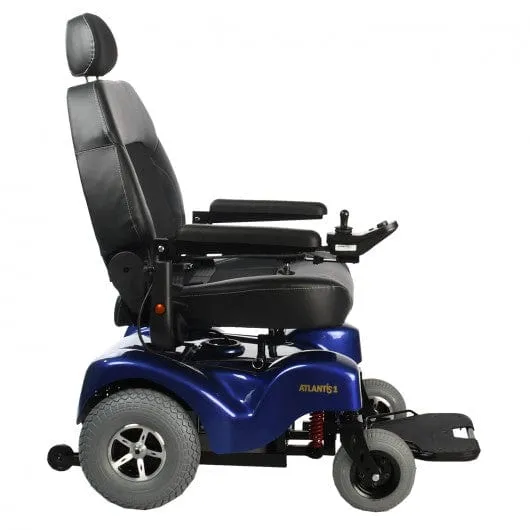

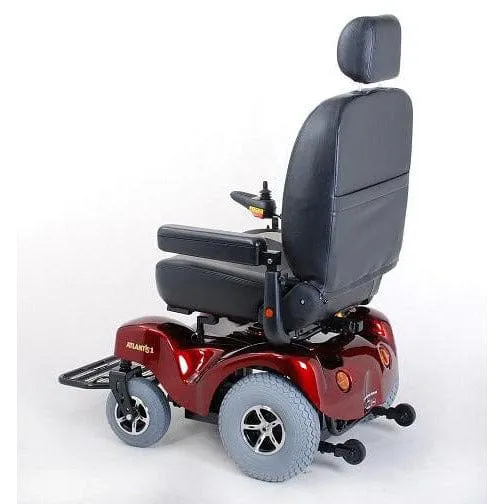

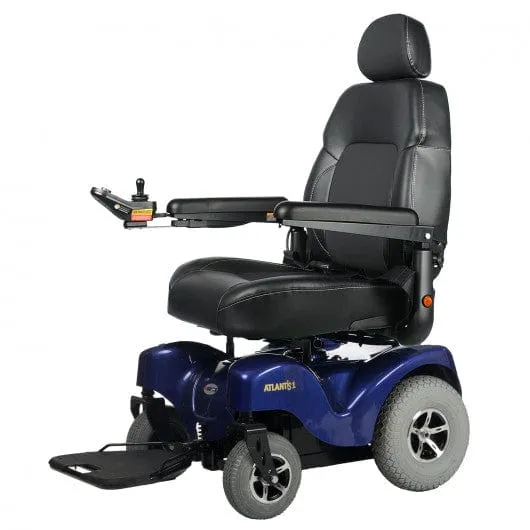

The Merits Atlantis Power Chair is a heavy-duty electric wheelchair designed for those who need extra durability and comfort. With a weight capacity of up to 600 lbs, this chair is perfect for larger and heavier users. The four-post seat construction provides durable support to the frame, while the extra-wide and extra-high back captain's seat ensures maximum comfort. The Atlantis Power Chair is equipped with high-power in-line motors that easily negotiate inclines of up to 10 degrees, making it perfect for outdoor use. The chair also has a drive range of up to 50 km on one charge, so you can go where you need to without worrying about running out of power. The height-adjustable flip-up armrests and semi-reclining backrest add to the chair's versatility and comfort. If you're looking for a reliable and heavy-duty power chair, the Merits Atlantis Power Chair is a great choice.
Standard Features
- Weight capacity: 600lbs
- Very heavy-duty power wheelchair with unique and prominent design
- Four seat posts provide more stable and a durable structure for the frame
- Available with a pan or captain seat in 24 or 26-inch width
- Super high power in-line motors help riders negotiate 10° incline
- 24H x 20-22D x 22H ergonomic seat is ideal for bariatric users
Technical Specs
Max Speed: 5mph
Range: up to 32 miles
Turning Radius: 31.5″
Ground Clearance: 3″
Motor: DC 24V, 300W
Battery: 12V/Group 24 x 2pcs
Charger: 6A off-board
Gradient: 10°

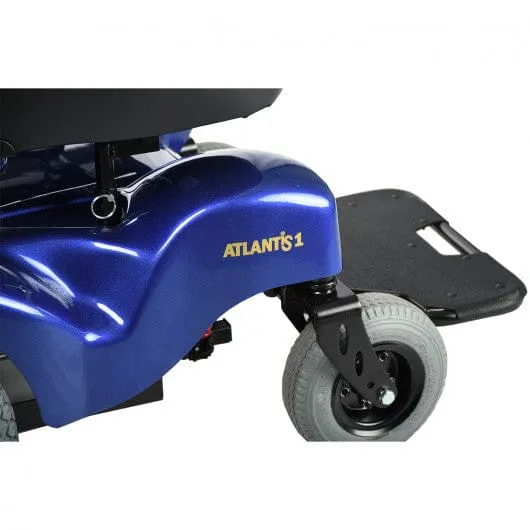

Casters: 9″ foam filled tires
Drive Wheels: 12″ foam filled tires
Brakes: intelligent, regenerative, electromagnetic
Dimensions
Seat Width: 22-26″
Seat Depth: 20″-22″
Seat Height: 20″
Backrest Height: 20″
Overall Length: 44″
Overall Height: 50″
Overall Width: 32″
Total Weight: 304 lbs
Weight Capacity: 600 lbs
Warranty
Power Chair Warranty – Lifetime Limited
Merits Health Products, Inc. warrants the main frame against defects in material and workmanship for the lifetime expectancy of this power chair (5 years).
For one (1) year from the date of purchase, Merits will replace at their option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative in the material or workmanship: Electronic controllers, harnesses, chargers, motors. Labor charges incurred in the installation or repair of the above mentioned parts plus all freight charges are not included in the warranty.
Warranty exclusions: Tires, plastic or rubber parts, upholstery/armpads, painted surfaces, seating, bearings.
Merits Health Products, Inc. will repair or replace parts as required, provided that an authorization for such return has been acquired by an established dealer and that the part or parts in question are returned fully insured with freight prepaid to us within the prescribed period of warranty. Labor charges incurred in the installation or repair of the above mentioned parts plus all freight charges are not included in the warranty.
Merits Health Products, Inc will not warranty any parts damaged by improper installation and/or repair on the part of the individual owner’s neglect, accident or misuse, nor those parts altered or serviced by an agency not authorized by us.
Resources
Owner's Manual
