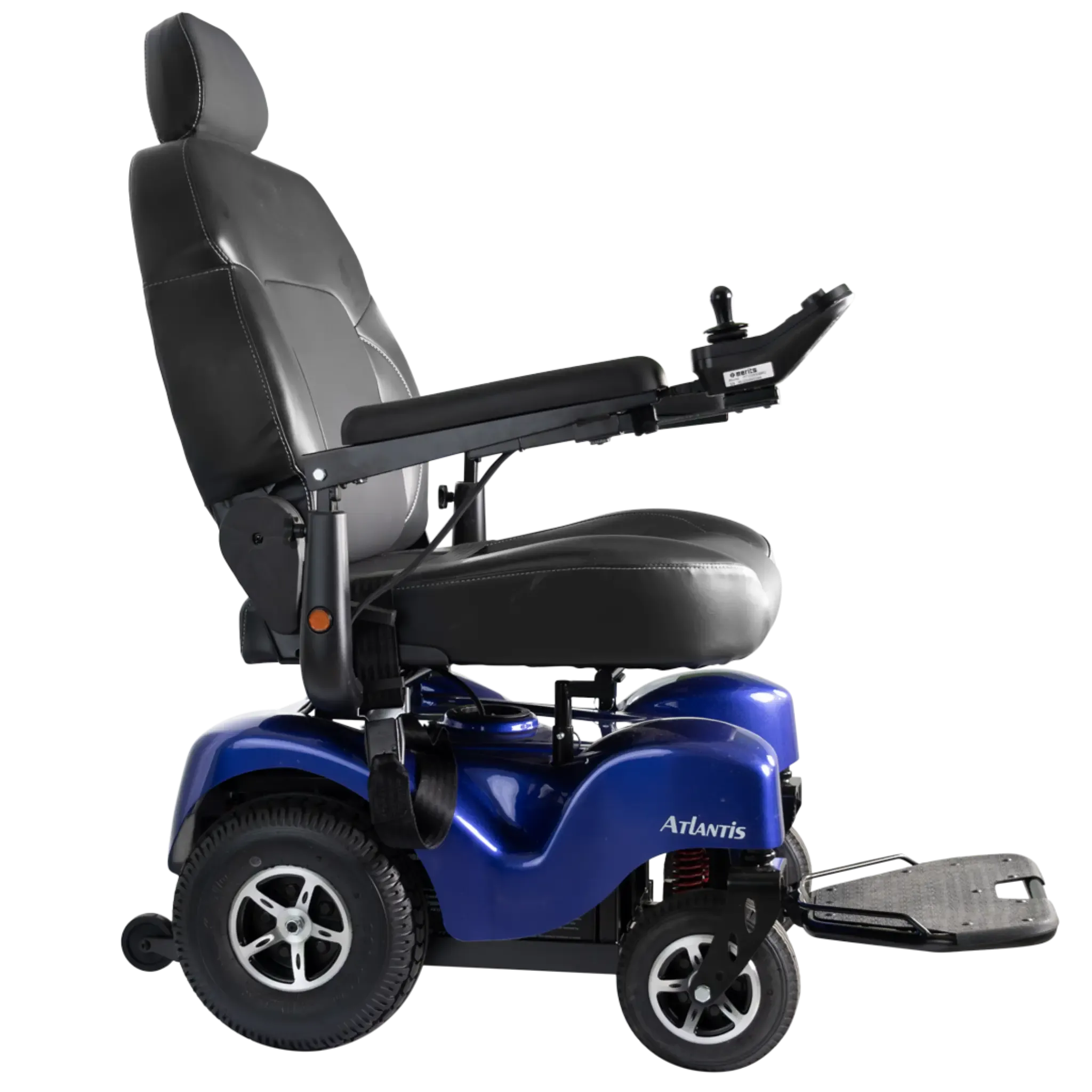

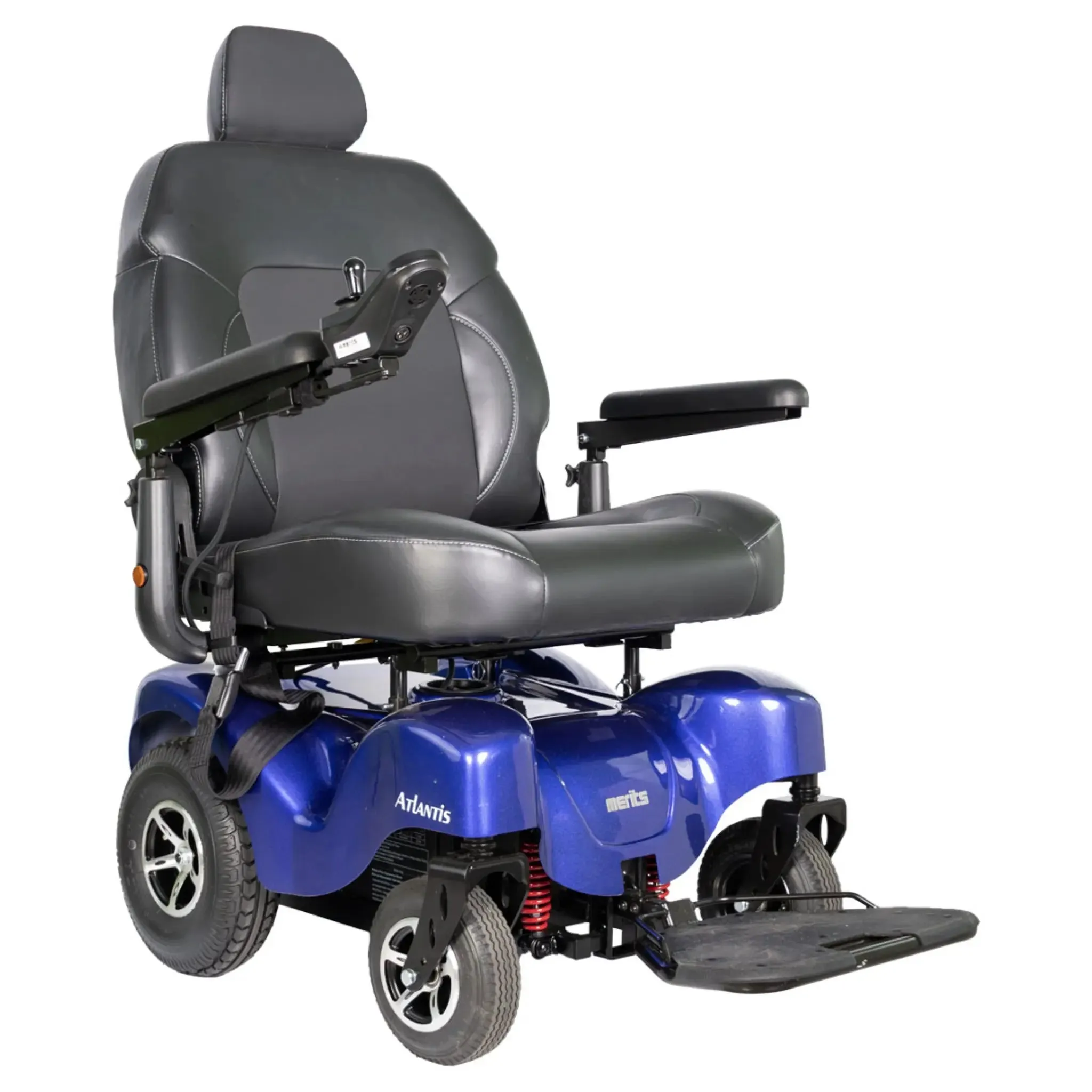

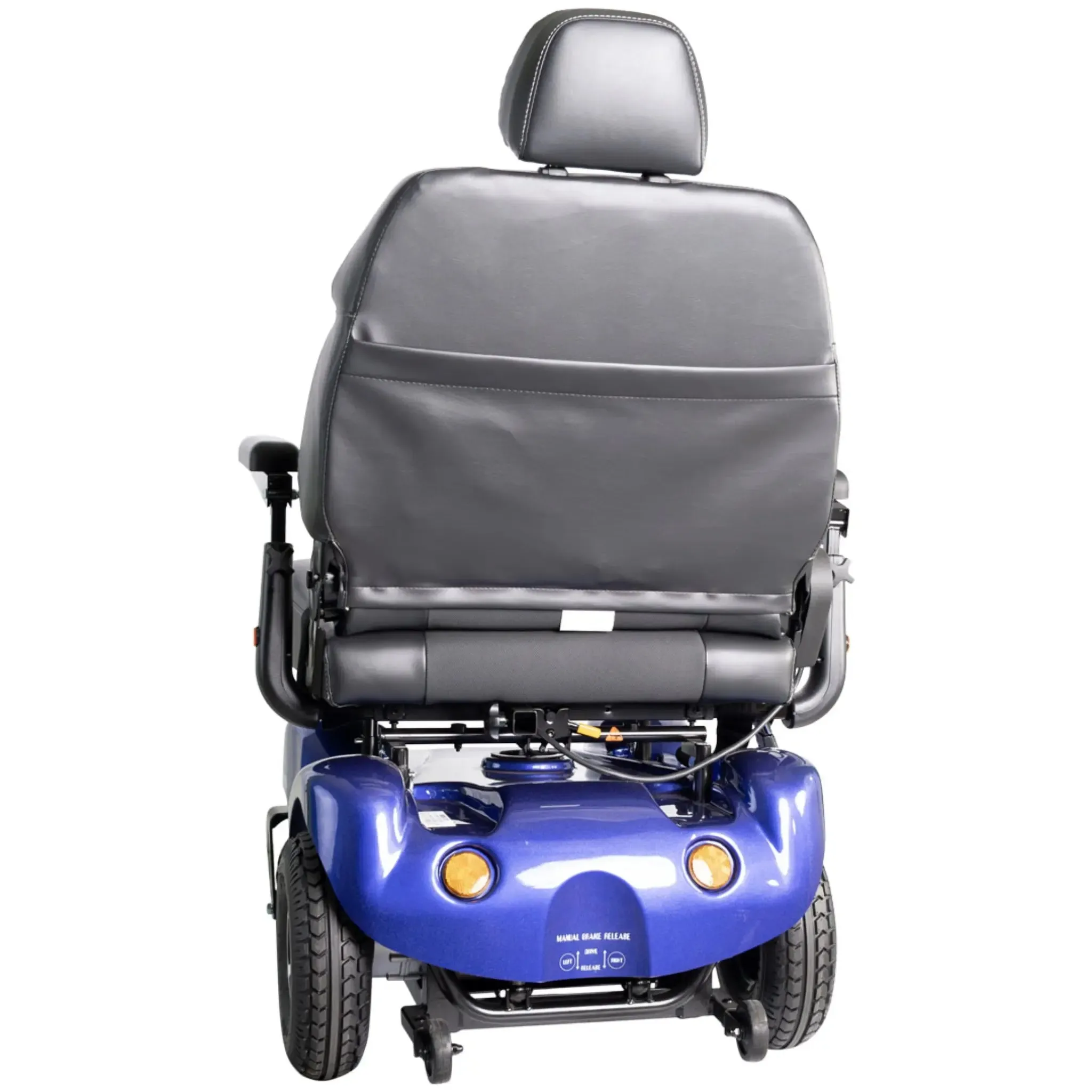

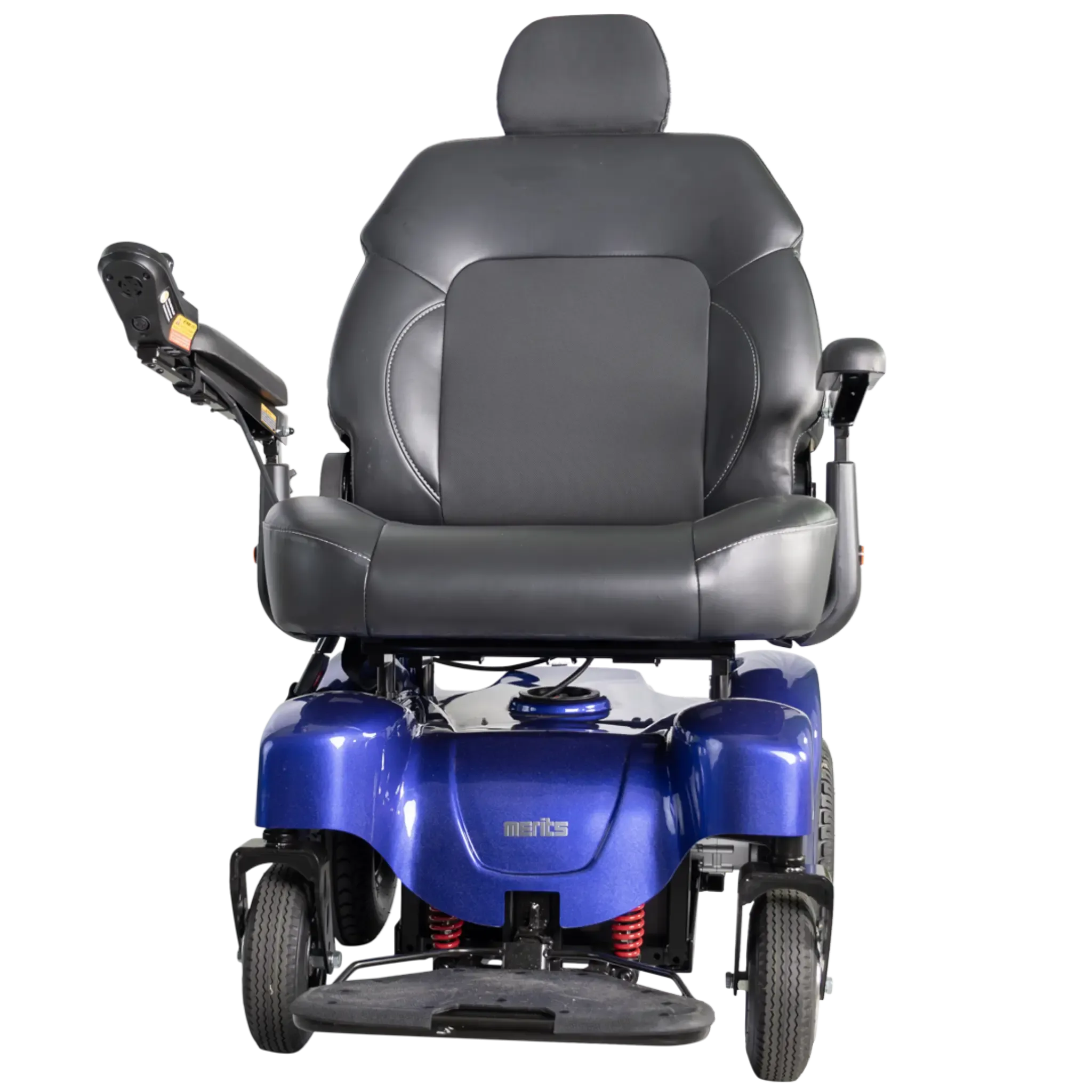

The Merits Atlantis (P710) Power Chair carries up to 600lbs

The Merits Atlantis (P710) Power Chair - HEAVY DUTY offers comparable comfort and durability to the standard power chairs, but also boasts heavy-duty capabilities including a 31.5-inch steering range, 12-inch drive wheels, and a powerful motor.

This unique combination allows for effortless maneuverability and reliable transportation.

Equipped with high-powered motors, this chair can conquer inclines up to 10° with ease. Catering to bariatric users, the ergonomic seat measures 24 inches wide and 20-22 inches deep, providing unparalleled comfort and stability.

Trust this premium power wheelchair to deliver exceptional power and stability.

HCPCS Code: K0826/K0827

Features

Weight Capacity 600 lbs.
Heavy-duty power wheelchair with a unique and prominent design
Four seat posts provide a more stable and durable structure for the frame
Available with a pan or captain seat in 24 or 26-inch width
Extra-wide seat and extra-high back provide great comfort for bariatric users
Super high power in-line motors help riders negotiate 10° uphill ramps easily

Specifications

Overall dimensions	44" x 27" x 50"
Weight capacity	600 lbs
Battery	2 x 12V/Group 24 (75AH)
Battery charger	6A off-board
Motor	24V 300W

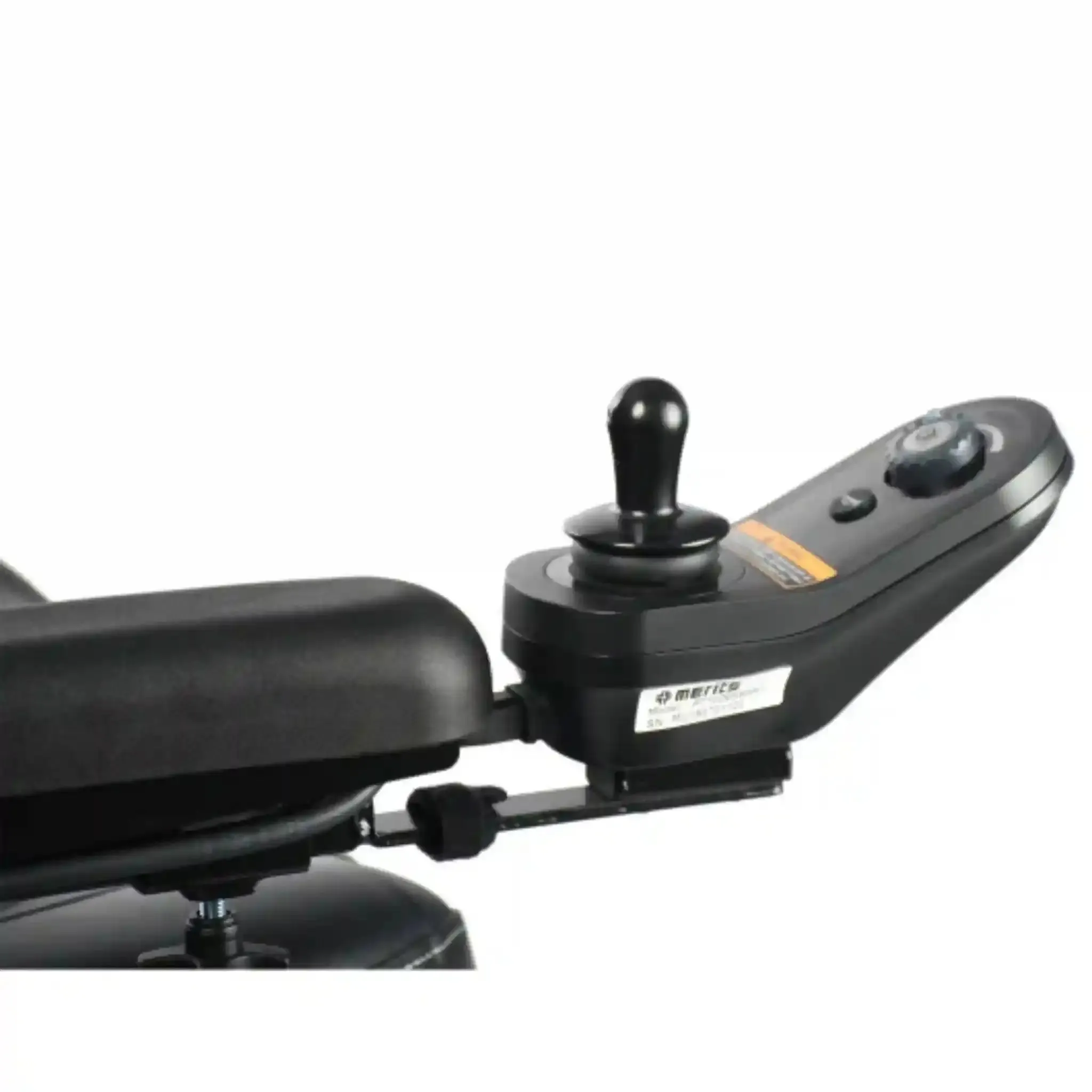

Controller	P&G VR2 60A
Braking system	Automatic Electromagnetic
Turning Radius	31.5"
Airline Approved	No
Ground clearance	3"
Net Weight	304 lbs
Range	up to 32 miles
Max Speed	5mph
Max slope	10°
Seat Width	24"
Seat Depth	22”
Backrest Height	24"
Seat-to-floor Height	23" - 24"
Elevating seat	-
