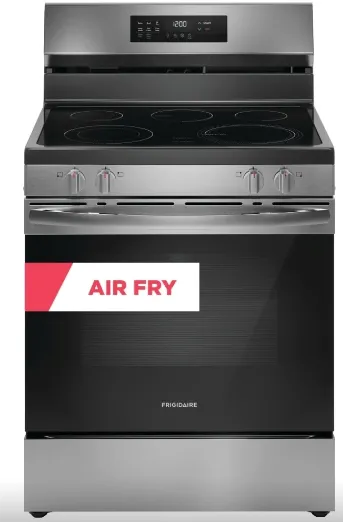

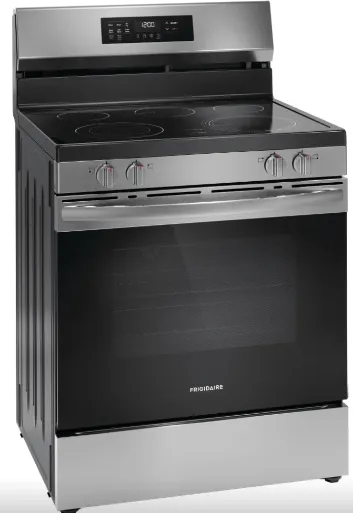

Product Line Electric Range
Power Type Electric 240v
Size 30"
Installation Type Free-Standing
Factory Springfield
Color Stainless Steel
Cooktop
Cooking Surface Type Smooth
Element On Indicator Light Yes
Hot-Surface Indicator Light Yes
Cooktop Performance
Right Front Element Burner Size 9"
Right Rear Element Burner Size 6"
Left Front Element Burner Size (Small) 6"
Left Front Element Burner Size (Large) 9"
Left Rear Element Burner Size 6"
Right Front Element Burner 3200 Watts
Right Rear Element Burner 1200 Watts
Left Front Element Burner (Small) 1400 Watts
Left Front Element Burner (Large) 3000 Watts
Left Rear Element Burner 1200 Watts
Center Rear Element Burner 100 Watts
Keep Warm Burner Location Center Rear

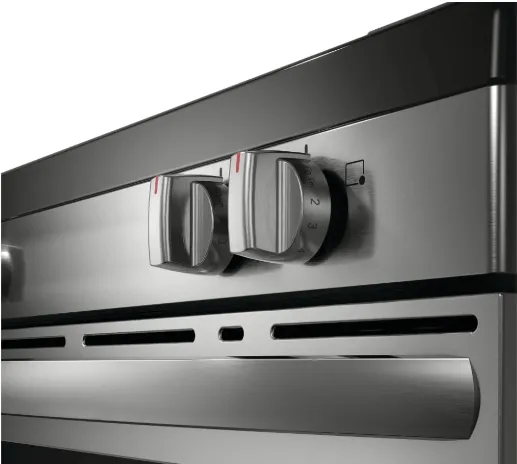

Cooking Controls
Air Fry Yes
Bake Yes
Broil Yes
Child Lock Yes
Clock Yes
Convection Bake Yes
Delay Clean Yes
Delay Start Yes
Keep Warm Yes
Kitchen Timer Yes
Light Yes
Lockout Yes
Off Yes
Oven Light Yes
Preheat Yes
Self Clean Yes
Set Clock Yes
Start Yes
Temperature Display Yes
Timer On / Off Yes
Up / Down Arrow Yes
User Preferences Yes
Warm Zone Yes
Cooking Controls Function
Change between Continuous Bake Setting or 12-Hour Energy Saving Feature Yes
Delayed Bake Yes
Program Fahrenheit or Celsius Yes
Oven
Bake Element 2500 Watts
Bake Element Pass 8
Bake Element Type Hidden
Broil Element 4000 Watts
Broil Element Pass 6
Broil System Yes
Cleaning System Yes
Convection Yes
Convection Type Fan
Number of Convection Fans 1
Number of Rack Positions 6
Oven Interior Color Midnight Black
Oven Light Quantity 1
Oven Light Watts 40 Watts
Rack Position Type Embossed
Rack Type 1 Flat
Rack Type 1 Quantity 2
Drawer
Drawer Handle Style Integrated
Drawer Type Storage

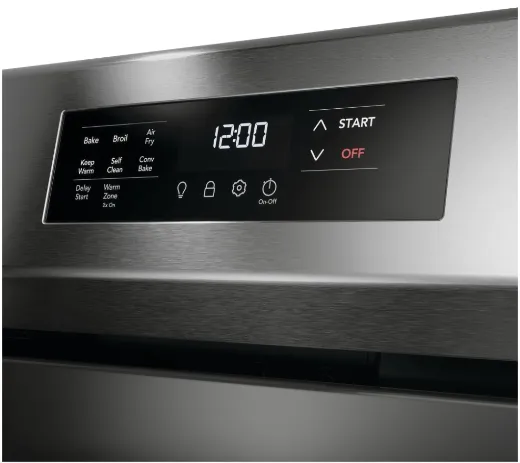

Controls
Control Lock Yes
Display
Control Location Rear
Display Interface Color White
Display Type LED
Dimensions and Volume
Minimum Height 46 3/4"
Maximum Height 47 3/4"
Width 30"
Depth 26"
Depth With Door 90° Open 47 5/16"
Depth With Handle 28 1/2"
Oven Interior Height 18 1/8"
Oven Interior Width 25 3/16"
Oven Interior Depth 19 7/8"
Oven Capacity 5.3 Cu. Ft.
Electrical Specifications
Amps @ 240 Volts 13 Amps
Minimum Circuit Required 40 Amps
Voltage Rating 240 V
Installation
Adjustable Leveling Legs Yes
Power Cord Included Yes
General Specifications
Frigidaire Fit Promise Yes
Product Weight 167 lbs
Warranty - Labor 1 Year
Warranty - Parts 1 Year
Safety Certifications and Approvals
CSA Listed Yes
