- 【Wide Application】This RV vent fan provides a fantastic air circulation for RV, trailer, camper and other vehicles, and helps to lower indoor temperature & eliminating smell from food smoke, waste, pets, etc.
- 【12V RV Ventilation Fan】This is Caravan Side Exhaust Outlet Unidirectional Dust proof Ventilation Fan, Length:205MM, Width: 186MM, Height:65MM.
- 【Faster exhaust fan】Speed 2000RPM/min, air volume: 2.3m³/min, speed 3000RPM/min, air volume: 3.3m³/min.
- 【Long Life Time】Adopts high quality material, durable to use. working with ultra-low noise, anti-interference, reduce the noise damage to the human body, provide a quieter and comfortable space.
- 【Portable and Lightweight】Dust cover design,effectively prevent the dust.The fan is installed outside,easy and convenient to remove.
Description:
Fits for RV, camper, motorhome, trailer, boat, yacht etc.
Adopts high quality material, durable to use
Easy to install.
Rated Voltage: 12V
Rated Current: 0.3A
Exhaust volume: 3.3M3/min
Speed: 2000RPM/min, 3000RPM/min

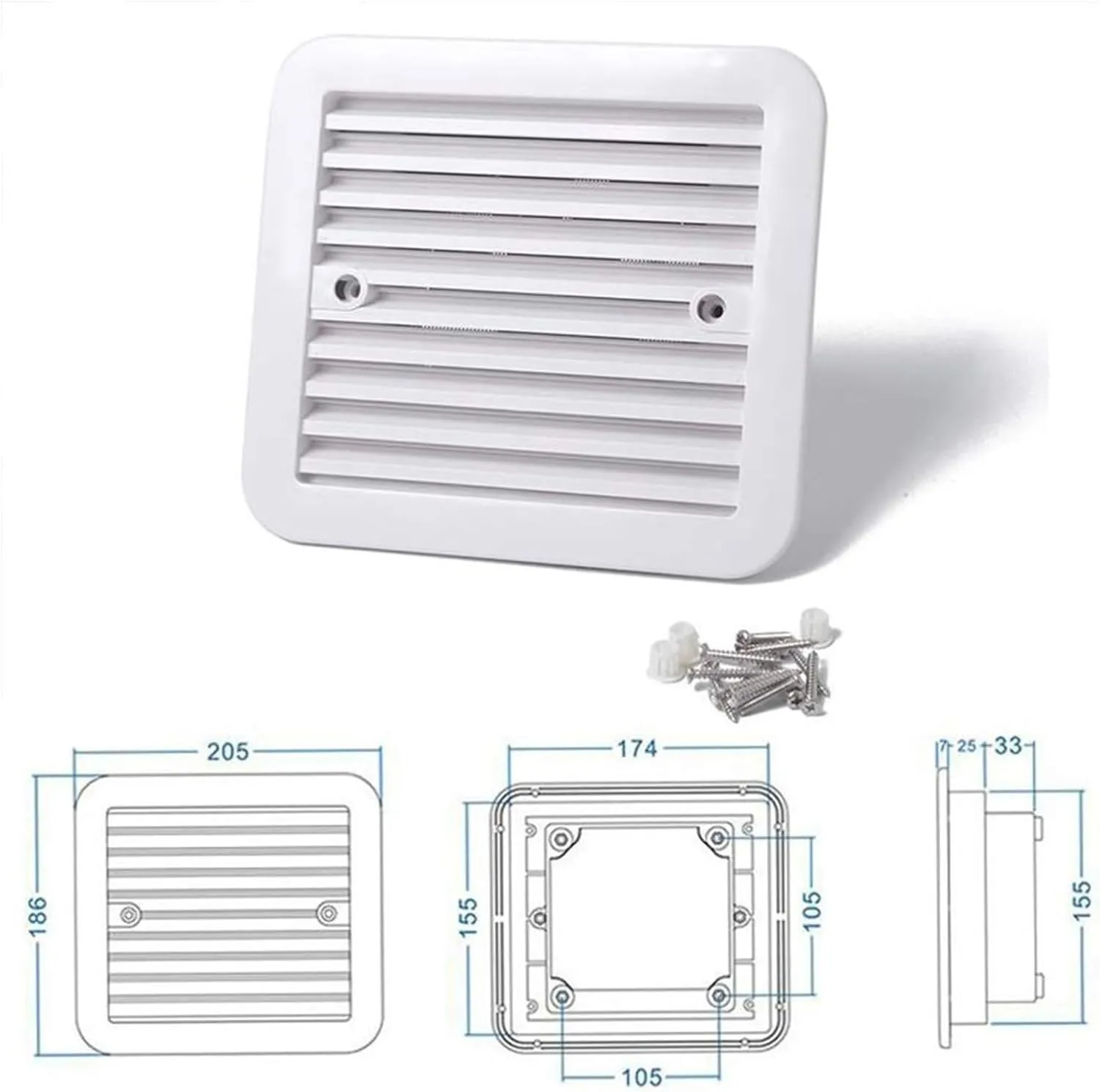

Opening Hole Dimension: 175*155mm (Approx.)
Dimensions: 205*185*70mm(Approx)
Color: White
Application: Suitable for bathroom, kitchen, warehouse, RV, , motorhome, yacht, providing air exchange between indoor and outdoor quickly
How to Use:
1. Confirm the location of the hole that needs to be opened and clean the . Make a square hole of 175x155mm on the panel
2. Wiring, red wire for positive pole of power supply, black wire for negative pole of power supply
3. Place the exhaust fan into the opened hole and apply waterproof adhesive on all four sides of the exhaust fan
4. Fix the exhaust fan with screws and install the outer cover of the grille to complete the installation. Pay attention to the downward direction of the grille to provide waterproofing
Package includes:
1*Exhaust Fan
1 Set of Mounting Accessories
